GTX Premium
3CH QHD | FHD | FHD DASH CAM
Inside IR Cam, Night Vision
The New Cloud Service for GNET Dash Cam Users
withCLOUD™
“withCLOUD” for fleet management system by our own technology.
Unlimited storage capacity beyond the limitation of dash camera memory.
Live Streaming
Monitor driving and vehicle status in live,
video feeds are available from all dash cam channels.
Live GPS tracking
Check vehicle’s location by tracking GPS signal,
and check simply status of traffic condition.
Statistics
Check driving patterns,
analysis data of time period of packing mode,
driving mode, speed and distance.
Geo-Fence
Set a fence of boundary to a designated location,
it provides notification to the driver with a security alert.
Outstanding Visibility under the Starlight
The STARVIS is back-illuminated pixel technology used in CMOS image sensors for surveillance camera applications.
It features a sensitvity of 2000 mV or more per1 um2(color product, when imaging with a 706cd/m2 light source,
F5.6 in 1 s accumulation equivalent), and realize high picture quality in the visible-light and near infrared light regions.
Clear Recording Quality when Driving at Night
REAL HDR
Real HDR is installed to remove light blurring when driving at night,
and it shows clear recording quality in various lighting conditions such as backlight and tunnels.

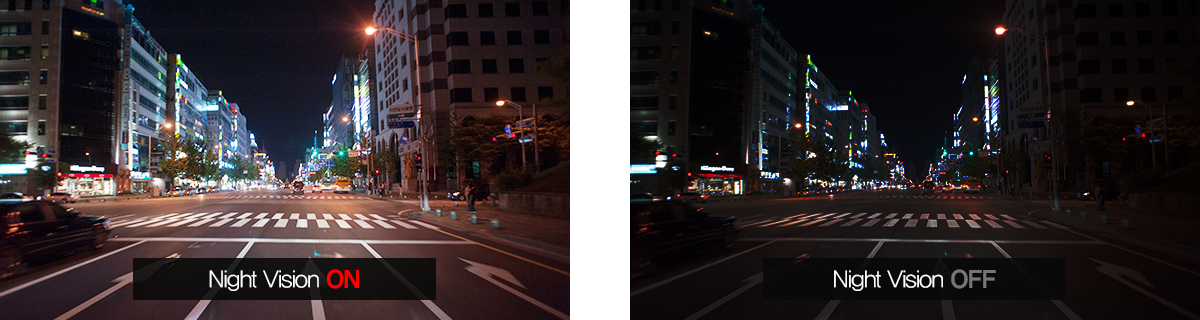

Night Vision Technology
NIGHT VISION
Enhanced recording function in dark environments or at night
ADAS is useful when the both Night Vision and ADAS working together.
* There may be differences depending on the usage environment
3 Functions for Safe Driving
ADAS
“ADAS update”
ADAS is a safe driving assistance system for the driver’s safe driving environment
FVSA
Front Vehicle Start Alarm
The vehicle in front of you is pulling
away more than 2 meters, the dash cam let the
driver know with the beep sound
also the departure icon on the LCD screen.
*Non-LCD product provides sound warning only
FCWS
Forward Collision Warning System
If the distance of the vehicle in front of you is
reducing rapidly in short time with high speed,
the dash cam let driver know with the beep sound and
display collision warning icon on the LCD screen.
*Non-LCD product provides sound warning only
LDWS
Lane Departure Warning System
If you leave the lane while driving,
the dash cam let the driver know with
beep sound and it shows yellow or red lines
for notification on the LCD screen.
*Non-LCD product provides sound warning only
* Warning icons for lane detection, forward departure and collision are only visible if the LCD is on.
ADAS settings are available when the GPS is connected.
Video codec(HEVC)
*HEVC(High Efficiency Video Coding)
H.265
H.265 compression rate is up to 2 times higher than H.264.
It means that users can use 256GB SD card as 512GB SD card.
Bright and clear video recording both day and night
Internal IR Camera
FULL HD Internal IR Camera(IR LED X8)
3. 5 inch LCD Touch Screen
LCD GUI
Easier and clearer 3. 5 inch LCD touch screen with widescreen
The Real-time video, Play recorded video, Dash Cam Settings,
LED setting and memory card with smart GUI can be managed directly from the front camera without PC connection.
MAIN PAGE
This is the main page where you can play the recorded video,
live video, setup, Wi-Fi, standby mode, and power off.
SETTINGS PAGE
the system to record, time, sound, ADAS, events, and settings
Optimal Viewing Angle without Distortion
WIDE VIEWING ANGLE
Front camera: 150° / Interior: 140° / Rear camera: 140°
Excessive angle of view refracts the image, causing effects such as distortion and loss of distance.
The GNET System has an optimal camera angle of 150° view without those problems,
the situation of accidents on the side angle is recorded more reliably, and images without distortion of left / right / up / down are provided.
Smartphone Link via Wi-Fi®
G-NET APP
User-focused
Firmware Upgrade
After accessing the firmware
configuration by APP, the latest
firmware can be automatically
searched for and downloaded.
All the features you need at once!
Easy and convenient GNET APP
You can easily set up device registration,
real-time video setup, recorded
video list, and customer support
through the main screen.
Customized
configuration by APP
Using the Smartphone APP,
you can upgrade the firmware
and play video as well as
configure various settings
*You can only connect your smartphone with WiFi® dongle connected to the black box (WiFi® dongle is sold separately)
*Disable IOT/WiFi feature when CLOUD is enabled
For Vehicle Battery Discharge Protection
LBP FUNCTION
It is an intelligent Safe Guard function that automatically shuts down recording when the voltage falls below
a specified voltage and cuts off the power to protect the battery of the vehicle.
LBP FUNCTION AUTO SAFE GUARD ( LBP ON / OFF )
Settings can be made directly from the dedicated GNET PC VIEWER, and the vehicle voltage can be checked when checking
the recorded video of the vehicle. You can easily set up wirelessly via GNET APP at the time of smartphone interlocking
| Division | Configurable Voltage (V) | ||||
| Power Off | 11.3 | 11.5 | 11.8 | 12 | 12.3 |
Compitable GNET PC VIEWER
GNET PC VIEWER
Easily play and the check recorded video with a viewer program for PC
It provides various functions Zoom, partial zoom function, Lane drawing function, set recording frame.
Backup features include AVI/MP4 file generation, tampering prevention, thumbnails, and interval repetitive searches.
GTX-PREMIUM DASH CAM

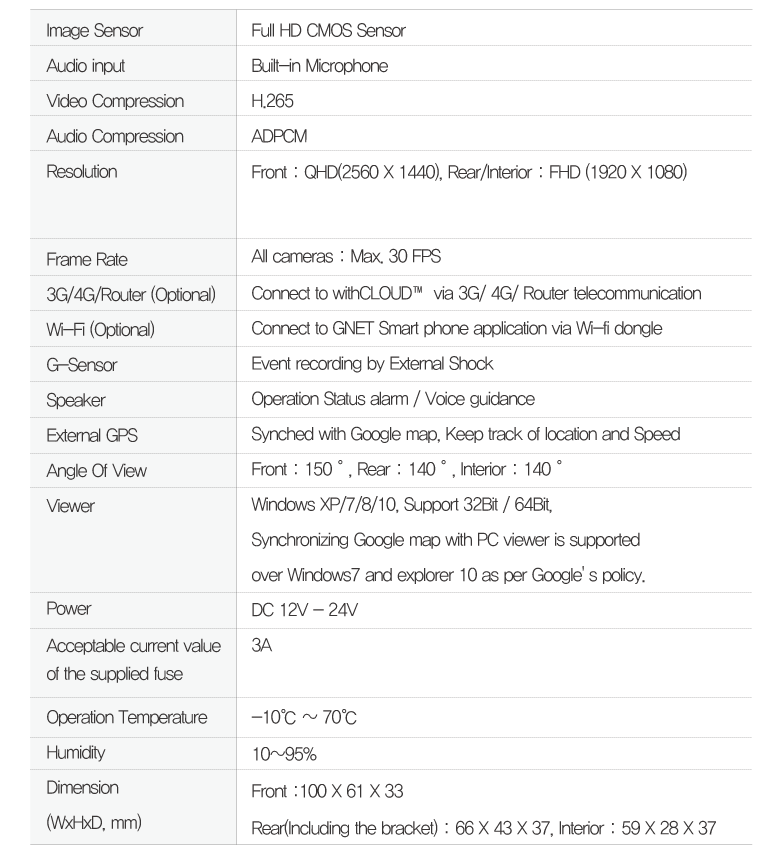

SPECIFICATION
※The image of components may be different from the real components.
※Specifications and Components may be changed without notice for improving quality.
※We are highly recommend to use a Genuine Memory card from Gnetsystem.
